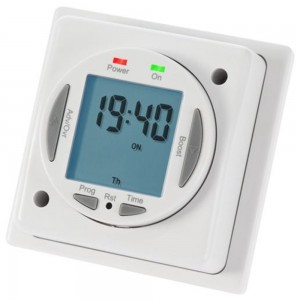

Combination Unit "On/Off" 7 day / 24hr Fused Spur Timer

NWT1582
star star star star star
Digital Socket Box Timer
search
  • Digital Socket Box Timer
  • Combination Unit "On/Off" 7 day / 24hr Fused Spur Timer - Technical Drawing

 The Fused Spur Timer is for use with an electric heated towel rail / radiator fitted with an electric element. This is a practical combination device of a fused spur combined with a 7 day timer device in one unit.  (NOTE: Can also be used with other electric products that require a timer)

£60.00
VAT included
local_shipping If you order before 2pm your order will be delivered FREE on Tuesday, 2nd April due to the Bank Holiday.

Data sheet

Outer Finish
White
Height (mm)
81mm
Width (mm)
81mm
Depth (mm)
24mm
Design
Fused Spur TImer
Colour Family
White
Material
Plastic (Class 1 - Contains an Earth wire)
Guarantee
5 Years (CE Approved. Conforms to Directives: 73/23/EEC, 89/336/EEC)
Volts
16(4)A load rating
IP Rating
Must Be Used Outside Bathroom (IP 51 electronics, IP20 terminal box)
Please Note
3000 watts Max Capacity, Resistive Load: 16A, Inductive load: 4A, Operating voltage: 230V 50Hz
Brand
NWT Direct NWT Direct

 The Fused Spur Timer is for use with an electric heated towel rail / radiator fitted with an electric element. This is a practical combination device of a fused spur combined with a 7 day timer device in one unit.  (NOTE: Can also be used with other electric products that require a timer)


FEATURES:


* Saves installing 2x separate devices (both of which will be required for an electric towel rail or electric radiator)

* The Timer function covers a 5+2 or 7 day week, with up to 4 different 'on' and 'off' programme blocks. (Shortest Switching time 1 minute)

*
Permanent "OFF" and timed outputs available.

*
BS1362 fuse replacement from front.

* Integral memory back up battery retains programmes in event of power failure.

*
This product must not be used on a load greater than 3kw resistive.

* When this timer is used with a thermostatic heating element, once switched off the element will remember its temperature setting and power on again at the same setting.



We recommend that this product is fitted by a qualified electrician.
